High Voltage Power Supplies for Industrial X-Ray and XRF Systems
Genvolt provides a wide range of high voltage power supplies designed for industrial X-ray and XRF inspection systems. Our solutions deliver stable, precise high voltage output required for continuous operation in demanding environments. From compact DC input modules to high-power X-ray generators, Genvolt systems support applications including material analysis, industrial inspection, security screening and non-destructive testing.
High Voltage X-Ray Generators
Reliable high voltage generators designed to power industrial X-ray systems with stable output and long-term performance.
Precision Voltage Control
Accurate voltage and current regulation ensures consistent imaging quality for X-ray and XRF applications.
Compact DC Input Modules
Compact DC input modules designed for integration into space-constrained industrial inspection equipment.
Continuous Operation Design
Systems engineered for continuous operation in demanding industrial environments and inspection systems.
High-Performance Industrial X-Ray Power Supplies
8000 Series High Voltage DC Power Supply
The Genvolt 8000 Series High Voltage DC Power Supply is a rugged modular range of AC-input DC high voltage units designed to operate from a universal mains input of 85VAC to 256VAC at 50/60Hz. Power output options range from 500V to 70kV at 120W and from 49kV to 70kV at 200W, providing stable performance for demanding high-voltage industrial and scientific applications.

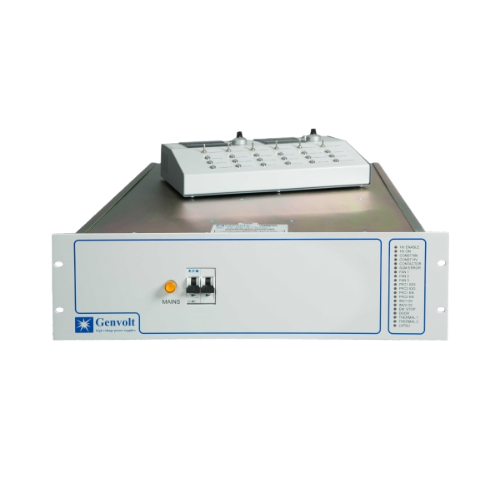

E-Beam High Voltage Power Supply
The EB04 series e-beam power supply equipment for electron beam welding machines is designed and manufactured by Genvolt. It covers power from 100W to 2kW and voltage from 60kV to 225kV. Each unit has an inbuilt DC filament power supply and grid bias. The current of the filament and grid bias voltage are measured directly at high level and transfer to a control system via optical fibre.

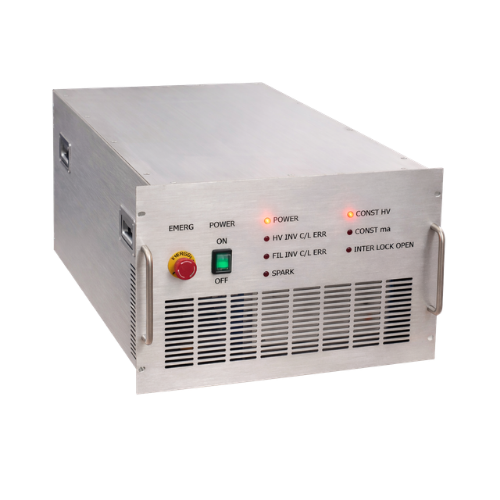

Electron Beam Welder Power Supply Rack Mounted XL4000
The XL4000EB is an all-new design air-cooled electron beam welder high voltage power supply, specifically designed with the electron beam welder market in mind.

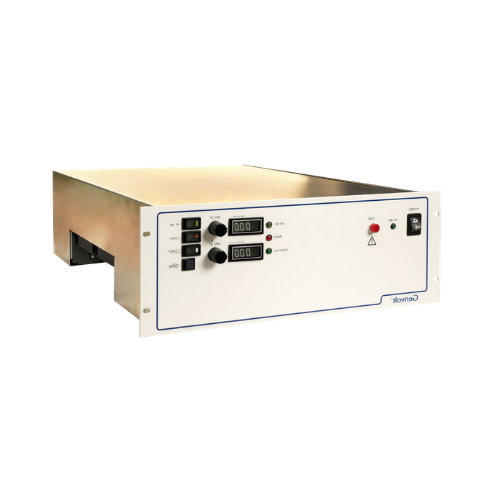

Pegasus Laboratory High Voltage Power Supply
The Pegasus Laboratory Power Supply range are DC high voltage power supplies suitable for a vast range of laboratory and industrial uses. A 19-inch rack-mounted configuration is standard on the HV power supplies.

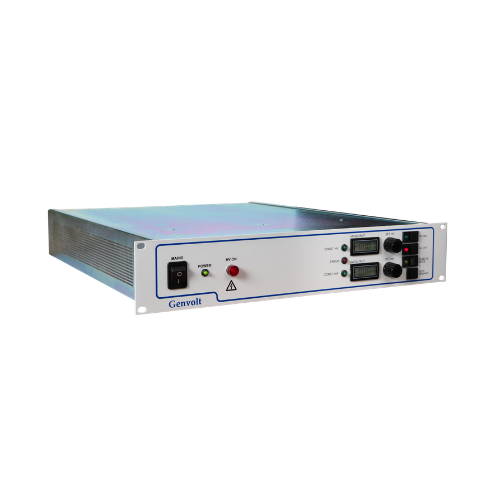

Pegasus P1800 Rack High Voltage Power Supply
The Pegasus P1800 Range rack power supply is a general purpose DC High Voltage Power Supply suitable for laboratory and industrial use. Standard remote control is by analogue signals. Should other controls be preferred please discuss this with our technical staff.
Pegasus SC Smart Control HV Supply
The Pegasus SC High Voltage Power Supply is designed for reliable laboratory and industrial applications. RS485 and Bluetooth remote control enable safe operation while providing flexible waveform programming capabilities. Available in a standard 19-inch rack with reduced weight, the unit ensures easy servicing, with air insulation below 20kV and encapsulated insulation for higher voltages.

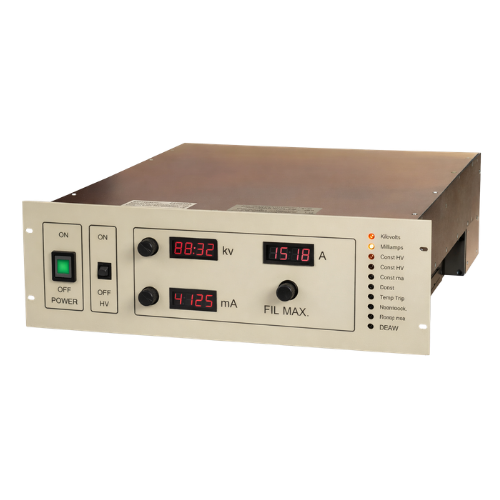

Perseus 1mA 60kV X-Ray Generator High Voltage Power Supply
The Perseus 60kV X-Ray Generator range are a series of high voltage power supplies designed for non-destructive testing (NDT). Additionally the Perseus is a highly stable and accurate X-Ray power source with an output current of 0-1mA.
Perseus Industrial X-Ray Generator High Voltage Power Supply
The Perseus industrial X-Ray Generator is from the Genvolt series of high voltage power supplies which are designed for applications that require an industrial x-ray.

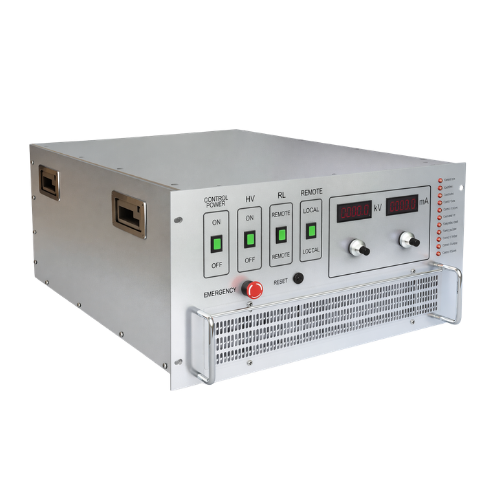

Pleiades 6kW Rack-Mounted High Voltage Power Supply
The Pleiades 6kW rack mounted HV Power Supply is a new generation of chassis power supply developed by Genvolt. The Pleiades 6kW is ideal for applications where precision and efficiency are paramount. This power supply has an integrated 6U (10.5″) standard chassis and offers an output voltage range from 1kV to 100kV.
XRG High Voltage X-Ray Generator Power Supply
The XRG is a superior performance high voltage X-Ray generator power supply that provides a dependable source for tomography systems. Genvolts high frequency X-ray generator is a portable high voltage module. Subsequently allowing it to be integrated with many variants of X-Ray tube manufacturers products.
Designed for Reliable X-Ray System Performance
Genvolt X-ray power supplies are developed to meet the strict performance requirements of industrial inspection systems. With precise control, high reliability and compact integration options, these solutions support a wide range of X-ray applications across manufacturing and research industries.
Precision Engineering for Advanced X-Ray Applications
Genvolt’s expertise in high voltage engineering allows the development of advanced power supplies capable of supporting modern X-ray and XRF technologies. These solutions are designed for precision, efficiency and reliability in both laboratory and industrial applications.
High Efficiency Design
Optimized power electronics ensure efficient operation and stable system performance.
Robust Industrial Construction
Built to withstand demanding operating conditions in industrial environments.
Custom High Voltage Solutions
Bespoke power supplies designed to meet specialized X-ray system requirements.
Engineering Expertise
Decades of experience in high voltage technology supporting complex inspection systems.
Precision Voltage Control
Advanced control systems deliver accurate voltage regulation for consistent X-ray output and imaging performance.
